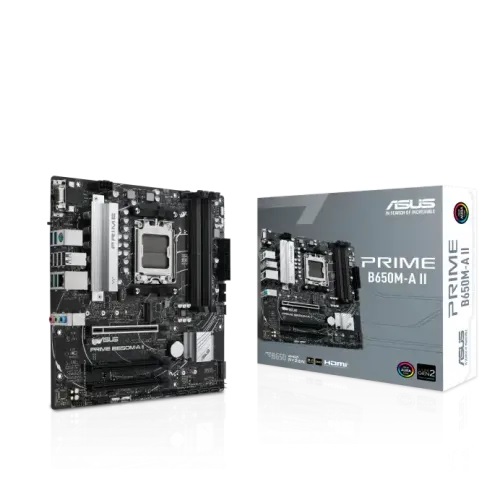

Asus PRIME B650M-A II AM5 mATX Motherboard

Asus PRIME B650M-A II AM5 mATX Motherboard—B650 DDR5 Motherboard with PCIe 5.0

The Asus PRIME B650M-A II AM5 mATX Motherboard is a DDR5-based AMD B650 motherboard designed for Ryzen desktop processors. It combines four DDR5 memory slots, two M.2 slots, PCIe 5.0 storage support, 2.5Gb Ethernet, front USB Type-C, and BIOS FlashBack in a compact micro-ATX design. ASUS currently lists support for Ryzen 9000, 8000, and 7000 Series desktop processors, with support for CPUs up to 170W.

For a new AM5 gaming, home, office, or productivity PC, this board offers useful upgrade room without requiring a full-size ATX motherboard.

Asus PRIME B650M-A II AM5 mATXMOTHERBOARD—Specification

ASUS specifies four DDR5 DIMM slots with a maximum capacity of 192 GB and support for AMD EXPO. Actual memory speed depends on the processor and memory configuration.

Pros & Cons

Pros

• AM5 support for Ryzen 9000, 8000, and 7000 Series
• Four DDR5 RAM slots
• Up to 192GB memory capacity
• PCIe 5.0 x4 M.2 support
• Two M.2 slots and four SATA ports
• 2.5 Gb Ethernet
• DisplayPort, HDMI, and VGA outputs
• Front USB Type-C
• BIOS FlashBack
• Compact micro-ATX design

Cons

• No built-in Wi-Fi or Bluetooth
• The main graphics slot is PCIe 4.0 rather than PCIe 5.0
• Wireless connectivity requires a separate adapter or card

Buyer tip: The PCIe 5.0 support on this motherboard is for the primary M.2 storage slot. The main GPU slot is PCIe 4.0 x16, so do not confuse the two when planning a new build.

Ryzen AM5 Platform and Core Performance

The PRIME B650M-A II uses the AMD AM5 socket and B650 chipset, making it suitable for current Ryzen desktop platforms. ASUS lists Ryzen 9000, 8000, and 7000 Series processor support and a maximum supported CPU rating of 170W.

The board uses a dedicated VRM heatsink and DIGI+ VRM technology. These features help manage power delivery and heat around the CPU area, while the B650 platform provides the connectivity needed for a modern desktop build.

For gaming, the PCIe 4.0 x16 slot provides the main graphics card connection. ASUS also provides two additional PCIe 4.0 x16 slots operating at x1, giving the board some room for smaller expansion cards.

DDR5 Memory and Storage

One of the major advantages of this model is its four DDR5 memory slots. ASUS specifies support for up to 192 GB, and DDR5 speeds up to 7600+ MT/s through overclocking, depending on the CPU and memory configuration. AMD EXPO support makes compatible DDR5 kits easier to configure for their rated performance.

Storage support is also strong for this class of motherboard. There are two M.2 slots. The primary slot supports PCIe 5.0 x4 with compatible Ryzen 9000 or 7000 processors, while the second M.2 slot supports PCIe 4.0 x4. Four SATA 6Gb/s ports are available for additional SSDs or hard drives.

This makes the board suitable for a PC with a fast NVMe boot drive plus a second SSD and additional SATA storage.

Connectivity, Audio, and Features

The motherboard includes Realtek 2.5Gb Ethernet, which can provide faster wired networking than standard Gigabit Ethernet when the network equipment and internet connection support it.

Rear connectivity includes two USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 1 Type-A ports, and four USB 2.0 ports. Display connectivity includes DisplayPort, HDMI, and VGA, giving users several options when using a compatible processor with integrated graphics.

A front USB 3.2 Gen 1 Type-C connector is also available for compatible PC cases. The board includes Realtek 7.1-channel high-definition audio, with audio shielding, premium capacitors, and dedicated PCB layers.

BIOS FlashBack is another useful feature. It can make BIOS updating easier in supported situations, which is particularly useful when installing a newer processor.

Performance for Work, Study, and Gaming

For office work, programming, browsing, study, and multitasking, four RAM slots and support for high-capacity DDR5 provide useful upgrade flexibility. A Ryzen processor with sufficient memory can handle common productivity workloads without requiring a high-end motherboard.

For gaming, the board is suitable for a dedicated graphics-card build. The PCIe 4.0 x16 graphics slot provides the required interface for modern GPUs, while PCIe 5.0 M.2 support gives compatible NVMe storage room for higher bandwidth.

However, buyers looking for onboard Wi-Fi or Bluetooth will need an additional adapter or expansion card because these wireless features are not listed in the motherboard’s specifications.

Who Should Buy the Asus PRIME B650M-A II?

This motherboard is a good fit for buyers building a modern AM5 DDR5 PC who want four RAM slots, two M.2 slots, 2.5 Gb networking, and a useful selection of display and USB ports.

It is especially practical for users who want room to upgrade memory and storage later instead of choosing a board with only two DIMM slots.

Who Should Consider Other Options?

Consider another motherboard if you specifically need built-in Wi-Fi and Bluetooth, a PCIe 5.0 graphics slot, or more premium connectivity.

Also check the CPU support list before pairing the board with a specific Ryzen processor. ASUS notes that memory speeds, PCIe behavior, and some specifications can vary according to the installed CPU.

Asus PRIME B650M-A II Price in Bangladesh & Value

At the time of checking, Bangladesh listings were around ৳17000, although actual stock and selling prices can change.

The board’s value comes from its combination of four DDR5 slots, 192GB memory capacity, PCIe 5.0 M.2 support, 2.5Gb Ethernet, and BIOS FlashBack. For Bangladesh buyers, confirm the exact warranty type and terms before purchase, especially when comparing official and unofficial stock.

Before leaving the shop or completing delivery, inspect the motherboard PCB, CPU socket, M.2 slots, rear I/O and accessories. Keep the invoice and warranty documents for future service needs.

Final Verdict

The Asus PRIME B650M-A II is a well-equipped micro-ATX motherboard for an AM5 DDR5 desktop. Its four RAM slots, two M.2 slots, PCIe 5.0 storage support, 2.5 Gb Ethernet, and BIOS FlashBack give it a practical feature set for gaming and productivity builds.

Its main limitations are the lack of onboard wireless connectivity and PCIe 4.0 graphics support. If those points fit your requirements, it provides a flexible foundation for a Ryzen-based PC.

Check the latest Bangladesh stock, price, and warranty terms before ordering.

Frequently Asked Questions

Is the Asus PRIME B650M-A II compatible with Ryzen 9000 processors?

Yes. ASUS currently lists Ryzen 9000, 8000, and 7000 Series desktop processor support. Check the CPU support list and BIOS requirements for the exact processor.

How much RAM does the PRIME B650M-A II support?

It has four DDR5 DIMM slots and supports up to 192GB of memory according to ASUS’s current specifications.

Does it support PCIe 5.0?

Yes. The primary M.2 slot supports PCIe 5.0 x4 with compatible Ryzen 9000 and 7000 Series processors. The main graphics slot is PCIe 4.0 x16.

How many M.2 SSDs can it support?

It supports two M.2 SSDs. The first supports PCIe 5.0 x4 with supported CPUs, while the second supports PCIe 4.0 x4. There are also four SATA 6Gb/s ports.

Does this motherboard have Wi-Fi and Bluetooth?

No. Built-in Wi-Fi and Bluetooth are not listed in the ASUS specifications, so a separate wireless adapter or expansion card is required.

Does it have 2.5 Gb Ethernet?

Yes. It uses a Realtek 2.5Gb Ethernet controller for wired networking.

What is the Asus PRIME B650M-A II price in Bangladesh?

At the time of checking, the listed price was approximately ৳17000. Prices can change based on stock and the seller.
