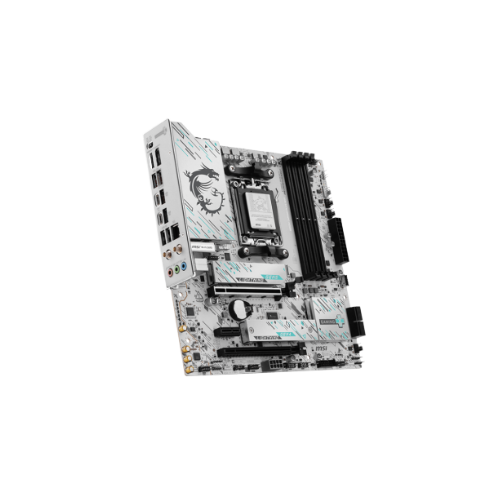

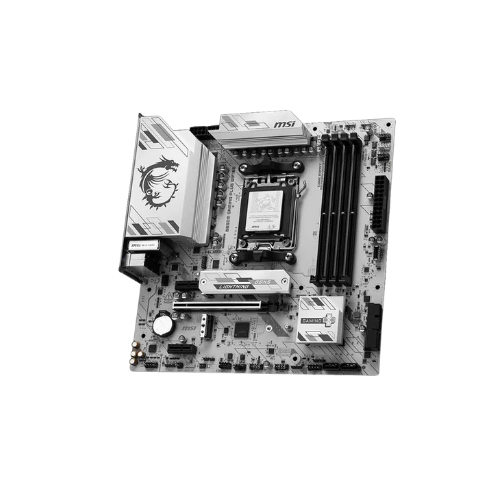

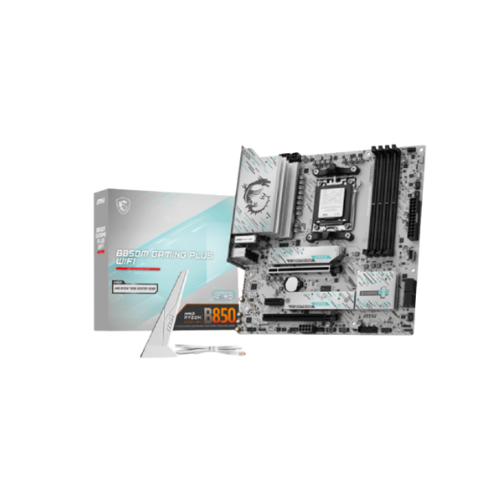

MSI B850M GAMING PLUS WIFI AM5 mATX Motherboard
Original price was: 23,000৳ .21,000৳ Current price is: 21,000৳ .
The MSI B850M GAMING PLUS WIFI AM5 mATX Motherboard is made for gaming. It works with AMD Ryzen 8000 and 7000 Series CPUs. Since it uses the mATX form factor, it fits well in small PC cases. But even in its small size, it offers strong features.
Fast Memory and Storage Support
First of all, it supports DDR5 RAM. You can overclock to 7200+ MHz. In addition, there are two M. 2 slots for fast storage. One uses PCIe Gen4 for better performance. As a result, your system runs fast and smoothly.
Wi-Fi, LAN, and USB Options
Besides storage, it comes with fast networking. You get Wi-Fi 6E for wireless gaming and a 2.5G LAN port for low-lag wired connections. Additionally, there are fast USB ports, including USB 3.2 Gen 2 and USB-C ports, for modern devices.
Easy Setup and User-Friendly Features
This board makes building simple. For example, BIOS Flashback lets you update BIOS without a CPU or RAM. Also, debug LEDs help you find problems fast. Therefore, it’s good for both beginners and experienced builders.
Keeps the System Cool
Heat is not a problem here. The VRM is strong and steady. On top of that, you get large heatsinks and smart fan control. These help prevent the system from overheating. So, your PC runs cool even during long gaming sessions.
Strong Power Delivery and VRM Design
The motherboard uses a 10+2+1 phase power system. This means your CPU gets steady power. That makes your system more stable. In other words, the board is ready for high-end Ryzen chips.
Strong Build and Durable Slots
It also looks and feels strong. For instance, the PCIe slot includes Steel Armor. This keeps your graphics card safe and steady. Meanwhile, it protects the signal from noise or bending.
Future-Ready for Storage Upgrades
This board supports future tech, too. Most importantly, it is ready for PCIe Gen5 SSDs. So, when faster drives come out, this board can handle them. However, it does not support Gen5 graphics cards. Even so, most users won’t need that right now.
A Great Choice for Gamers and Builders
In conclusion, the B850M is a solid choice for a small-sized gaming PC. It brings fast connection, strong build quality, and room to grow. If you don’t need Gen5 GPU support, it’s one of the best picks in its price range.
Technical Specifications
| Feature | Specification |
|---|---|
| Form Factor | mATX |
| Socket | AM5 (Supports AMD Ryzen 8000 / 7000 Series CPUs) |
| Chipset | AMD B850 |
| Memory Support | DDR5 up to 7200+ MHz (OC), Dual-channel, 4 DIMMs, up to 192GB |
| Storage | 2 x M.2 Slots (1 x PCIe Gen4 x4, 1 x PCIe Gen3 x4), 4 x SATA 6Gb/s |
| Expansion Slots | 1 x PCIe 4.0 x16 (Steel Armor), 1 x PCIe 3.0 x1 |
| Graphics Output | HDMI 2.1 / DisplayPort 1.4 (depends on CPU with iGPU) |
| USB Ports (Rear) | 1 x USB 3.2 Gen 2×2 Type-C, 1 x USB 3.2 Gen 2 Type-A, 4 x USB 3.2 Gen 1 Type-A |
| USB Ports (Internal) | Supports USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 headers |
| LAN | 2.5G Ethernet (Realtek) |
| Wi-Fi & Bluetooth | Wi-Fi 6E (Intel) + Bluetooth 5.3 |
| Audio | 7.1-Channel HD Audio Codec (Realtek ALC897) |
| BIOS Features | Click BIOS 5, Flash BIOS Button, Debug LED |
| Cooling | Extended Heatsink on VRMs, Smart Fan Control, 4 Fan Headers |
| VRM Design | 10+2+1 Duet Rail Power System |
| Special Features | Core Boost, Memory Boost, M.2 Shield Frozr, PCIe Steel Armor |
| Operating System | Windows 11 / Windows 10 |
| Price Range | Mid-range (budget-friendly with premium features) |
